Chapter 4 Linear Functions
4.2 Linear Functions
Learning Objectives
In this section, you will:
- Represent a linear function.
- Determine whether a linear function is increasing, decreasing, or constant.
- Interpret slope as a rate of change.
- Write and interpret an equation for a linear function.
- Graph linear functions.
Just as with the growth of a bamboo plant, there are many situations that involve constant change over time. Consider, for example, the first commercial maglev train in the world, the Shanghai MagLev Train ( Figure 1). It carries passengers comfortably for a 30-kilometer trip from the airport to the subway station in only eight minutes [1].

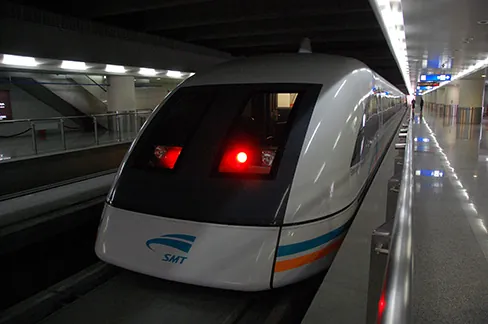

Suppose a maglev train travels a long distance, and maintains a constant speed of 83 meters per second for a period of time once it is 250 meters from the station. How can we analyze the train’s distance from the station as a function of time? In this section, we will investigate a kind of function that is useful for this purpose, and use it to investigate real-world situations such as the train’s distance from the station at a given point in time.
Representing Linear Functions
The function describing the train’s motion is a linear function, which is defined as a function with a constant rate of change. This is a polynomial of degree 1. There are several ways to represent a linear function, including word form, function notation, tabular form, and graphical form. We will describe the train’s motion as a function using each method.
Representing a Linear Function in Word Form
Let’s begin by describing the linear function in words. For the train problem we just considered, the following word sentence may be used to describe the function relationship.
- The train’s distance from the station is a function of the time during which the train moves at a constant speed plus its original distance from the station when it began moving at constant speed.
The speed is the rate of change. Recall that a rate of change is a measure of how quickly the dependent variable changes with respect to the independent variable. The rate of change for this example is constant, which means that it is the same for each input value. As the time (input) increases by 1 second, the corresponding distance (output) increases by 83 meters. The train began moving at this constant speed at a distance of 250 meters from the station.
Representing a Linear Function in Function Notation
Another approach to representing linear functions is by using function notation. One example of function notation is an equation written in the slope-intercept form of a line, where[latex]\,x\,[/latex]is the input value,[latex]\,m\,[/latex]is the rate of change, and[latex]\,b\,[/latex]is the initial value of the dependent variable.
In the example of the train, we might use the notation[latex]\,D\left(t\right)\,[/latex]where the total distance[latex]\,D\,[/latex]is a function of the time[latex]\,t.\,[/latex]The rate,[latex]\,m,\,[/latex]is 83 meters per second. The initial value of the dependent variable[latex]\,b\,[/latex]is the original distance from the station, 250 meters. We can write a generalized equation to represent the motion of the train.
Representing a Linear Function in Tabular Form
A third method of representing a linear function is through the use of a table. The relationship between the distance from the station and the time is represented in Figure 2. From the table, we can see that the distance changes by 83 meters for every 1 second increase in time.
Can the input in the previous example be any real number?
No. The input represents time, so while nonnegative rational and irrational numbers are possible, negative real numbers are not possible for this example. The input consists of non-negative real numbers.
Representing a Linear Function in Graphical Form
Another way to represent linear functions is visually, using a graph. We can use the function relationship from above,[latex]\,D\left(t\right)=83t+250,\,[/latex]to draw a graph as represented in Figure 3. Notice the graph is a line. When we plot a linear function, the graph is always a line.
The rate of change, which is constant, determines the slant, or slope of the line. The point at which the input value is zero is the vertical intercept, or y-intercept, of the line. We can see from the graph that the y-intercept in the train example we just saw is[latex]\,\left(0,250\right)\,[/latex]and represents the distance of the train from the station when it began moving at a constant speed.
Notice that the graph of the train example is restricted, but this is not always the case. Consider the graph of the line[latex]\,f\left(x\right)=2x+1.\,[/latex]
Ask yourself what numbers can be input to the function. In other words, what is the domain of the function? The domain is composed of all real numbers because any number may be doubled, and then have one added to the product.
Linear Function
A linear function is a function whose graph is a line. Linear functions can be written in the slope-intercept form of a line
where[latex]\,b\,[/latex]is the initial or starting value of the function (when input[latex]\,x=0\,[/latex]), and[latex]\,m\,[/latex]is the constant rate of change, or slope of the function. The y-intercept is at[latex]\,\left(0,b\right).[/latex]
Using a Linear Function to Find the Pressure on a Diver
The pressure,[latex]\,P,[/latex] in pounds per square inch (PSI) on the diver in Figure 4 depends on her depth below the water surface,[latex]\,d,[/latex] in feet. This relationship may be modeled by the equation[latex]\,P\left(d\right)=0.434d+14.696.\,[/latex]Restate this function in words.
Show Solution
To restate the function in words, we need to describe each part of the equation. The pressure as a function of depth equals four hundred thirty-four thousandths times depth plus fourteen and six hundred ninety-six thousandths.
Analysis
The initial value, 14.696, is the pressure in PSI on the diver at a depth of 0 feet, which is the surface of the water. The rate of change, or slope, is 0.434 PSI per foot. This tells us that the pressure on the diver increases 0.434 PSI for each foot her depth increases.
Determining Whether a Linear Function Is Increasing, Decreasing, or Constant
The linear functions we used in the two previous examples increased over time, but not every linear function does. A linear function may be increasing, decreasing, or constant. For an increasing function, as with the train example, the output values increase as the input values increase. The graph of an increasing function has a positive slope. A line with a positive slope slants upward from left to right, as in Figure 5 (a). For a decreasing function, the slope is negative. The output values decrease as the input values increase. A line with a negative slope slants downward from left to right, as in Figure 5 (b). If the function is constant, the output values are the same for all input values so the slope is zero. A line with a slope of zero is horizontal, as in Figure 5 (c).
Increasing and Decreasing Functions
The slope determines if the function is an increasing linear function, a decreasing linear function, or a constant function.
- [latex]f\left(x\right)=mx+b\,[/latex]is an increasing function if[latex]\,m>0.[/latex]
- [latex]f\left(x\right)=mx+b\,[/latex]is a decreasing function if[latex]\,m\lt0.[/latex]
- [latex]f\left(x\right)=mx+b\,[/latex]is a constant function if[latex]\,m=0.[/latex]
Deciding Whether a Function Is Increasing, Decreasing, or Constant
Some recent studies suggest that a teenager sends an average of 60 texts per day[2] . For each of the following scenarios, find the linear function that describes the relationship between the input value and the output value. Then, determine whether the graph of the function is increasing, decreasing, or constant.
- The total number of texts a teen sends is considered a function of time in days. The input is the number of days, and output is the total number of texts sent.
- A teen has a limit of 500 texts per month in his or her data plan. The input is the number of days, and output is the total number of texts remaining for the month.
- A teen has an unlimited number of texts in his or her data plan for a cost of $50 per month. The input is the number of days, and output is the total cost of texting each month.
Show Solution
Analyze each function.
- The function can be represented as[latex]\,f\left(x\right)=60x\,[/latex], where[latex]\,x\,[/latex]is the number of days. The slope, 60, is positive, so the function is increasing. This makes sense because the total number of texts increases with each day.
- The function can be represented as[latex]\,f\left(x\right)=500-60x\,[/latex], where[latex]\,x[/latex]is the number of days. In this case, the slope is negative, so the function is decreasing. This makes sense because the number of texts remaining decreases each day and this function represents the number of texts remaining in the data plan after[latex]\,x\,[/latex]days.
- The cost function can be represented as[latex]\,f\left(x\right)=50\,[/latex]because the number of days does not affect the total cost. The slope is 0, so the function is constant.
Interpreting Slope as a Rate of Change
In the examples we have seen so far, the slope was provided to us. However, we often need to calculate the slope given input and output values. Recall that given two values for the input,[latex]\,{x}_{1}[/latex]and[latex]\,{x}_{2},[/latex]and two corresponding values for the output,[latex]\,{y}_{1}\,[/latex]and[latex]\,{y}_{2}\,[/latex]—which can be represented by a set of points,[latex]\,\left({x}_{1}\text{, }{y}_{1}\right)\,[/latex]and[latex]\,\left({x}_{2}\text{, }{y}_{2}\right)[/latex]—we can calculate the slope [latex]m.[/latex]
Note that in function notation we can obtain two corresponding values for the output[latex]\,{y}_{1}\,[/latex]and[latex]\,{y}_{2}\,[/latex]for the function[latex]\,f,[/latex][latex]\,{y}_{1}=f\left({x}_{1}\right)\,[/latex]and[latex]\,{y}_{2}=f\left({x}_{2}\right),[/latex], so we could equivalently write
Figure 6 indicates how the slope of the line between the points, [latex]\left({x}_{1},{y}_{1}\right)[/latex]and[latex]\left({x}_{2},{y}_{2}\right),[/latex] is calculated. Recall that the slope measures steepness, or slant. The greater the absolute value of the slope, the steeper the slant is.
Are the units for slope always[latex]\,\frac{\text{units for the output}}{\text{units for the input}}\,\text{?}[/latex]
Yes. Think of the units as the change of output value for each unit of change in input value. An example of slope could be miles per hour or dollars per day. Notice the units appear as a ratio of units for the output per units for the input.
Calculate Slope
The slope, or rate of change, of a function[latex]\,m\,[/latex]can be calculated according to the following:
where[latex]\,{x}_{1}\,[/latex]and[latex]\,{x}_{2}\,[/latex]are input values,[latex]\,{y}_{1}\,[/latex]and[latex]\,{y}_{2}\,[/latex]are output values.
How To
Given two points from a linear function, calculate and interpret the slope.
- Determine the units for output and input values.
- Calculate the change of output values and change of input values.
- Interpret the slope as the change in output values per unit of the input value.
Finding the Slope of a Linear Function
If[latex]\,f\left(x\right)\,[/latex]is a linear function, and[latex]\,\left(3,-2\right)\,[/latex]and[latex]\,\left(8,1\right)\,[/latex]are points on the line, find the slope. Is this function increasing or decreasing?
Show Solution
The coordinate pairs are[latex]\,\left(3,-2\right)\,[/latex]and[latex]\,\left(8,1\right).\,[/latex]To find the rate of change, we divide the change in output by the change in input.
We could also write the slope as[latex]\,m=0.6.\,[/latex]The function is increasing because[latex]\,m>0.[/latex]
Analysis
As noted earlier, the order in which we write the points does not matter when we compute the slope of the line as long as the first output value, or y-coordinate, used corresponds with the first input value, or x-coordinate, used. Note that if we had reversed them, we would have obtained the same slope.
Try It
If[latex]\,f\left(x\right)\,[/latex]is a linear function, and[latex]\,\left(2,3\right)\,[/latex]and[latex]\,\left(0,4\right)\,[/latex]are points on the line, find the slope. Is this function increasing or decreasing?
Show Solution
[latex]m=\frac{4-3}{0-2}=\frac{1}{-2}=-\frac{1}{2};[/latex] decreasing because [latex]\,m\lt0.[/latex]
Finding the Population Change from a Linear Function
The population of a city increased from 23,400 to 27,800 between 2008 and 2012. Find the change in population per year if we assume the change was constant from 2008 to 2012.
Show Solution
The rate of change relates the change in population to the change in time. The population increased by[latex]\,27,800-23,400=4400\,[/latex]people over the four-year time interval. To find the rate of change, divide the change in the number of people by the number of years.
So the population increased by 1,100 people per year.
Analysis
Because we are told that the population increased, we would expect the slope to be positive. This positive slope we calculated is therefore reasonable.
Try It
The population of a small town increased from 1,442 to 1,868 between 2009 and 2012. Find the change in population per year if we assume the change was constant from 2009 to 2012.
Show Solution
Writing and Interpreting an Equation for a Linear Function
Recall from Chapter 2: Equations and Inequalities that we wrote equations in both the slope-intercept form and the point-slope form. Now we can choose which method to use to write equations for linear functions based on the information we are given. That information may be provided in the form of a graph, a point and a slope, two points, and so on. Look at the graph of the function[latex]\,f\,[/latex]in Figure 7.
We are not given the slope of the line, but we can choose any two points on the line to find the slope. Let’s choose[latex]\,\left(0,7\right)\,[/latex]and[latex]\,\left(4,4\right).\,[/latex]
Now we can substitute the slope and the coordinates of one of the points into the point-slope form.
If we want to rewrite the equation in the slope-intercept form, we would find
If we want to find the slope-intercept form without first writing the point-slope form, we could have recognized that the line crosses the y-axis when the output value is 7. Therefore,[latex]\,b=7.\,[/latex]We now have the initial value[latex]\,b\,[/latex]and the slope[latex]\,m\,[/latex], so we can substitute[latex]\,m\,[/latex]and[latex]\,b\,[/latex]into the slope-intercept form of a line.
So the function is[latex]f\left(x\right)=-\frac{3}{4}x+7,[/latex] and the linear equation would be[latex]\,y=-\frac{3}{4}x+7.[/latex]
How To
Given the graph of a linear function, write an equation to represent the function.
- Identify two points on the line.
- Use the two points to calculate the slope.
- Determine where the line crosses the y-axis to identify the y-intercept by visual inspection.
- Substitute the slope and y-intercept into the slope-intercept form of a line equation.
Writing an Equation for a Linear Function
Write an equation for a linear function given a graph of[latex]\,f\,[/latex]shown in Figure 8.
Show Solution
Identify two points on the line, such as[latex]\,\left(0,2\right)\,[/latex]and[latex]\,\left(-2,-4\right).\,[/latex]Use the points to calculate the slope.
Substitute the slope and the coordinates of one of the points into the point-slope form.
We can use algebra to rewrite the equation in the slope-intercept form.
Analysis
This makes sense because we can see from Figure 9 that the line crosses the y-axis at the point[latex]\,\left(0,\text{ }2\right),\,[/latex]which is the y-intercept, so[latex]\,b=2.[/latex]
Writing an Equation for a Linear Cost Function
Suppose Ben starts a company in which he incurs a fixed cost of $1,250 per month for the overhead, which includes his office rent. His production costs are $37.50 per item. Write a linear function[latex]\,C\,[/latex]where[latex]\,C\left(x\right)\,[/latex]is the cost for[latex]\,x\,[/latex]items produced in a given month.
Show Solution
The fixed cost is present every month, $1,250. The costs that can vary include the cost to produce each item, which is $37.50. The variable cost, called the marginal cost, is represented by[latex]\,37.5.\,[/latex]The cost Ben incurs is the sum of these two costs, represented by[latex]\,C\left(x\right)=1250+37.5x.[/latex]
Analysis
If Ben produces 100 items in a month, his monthly cost is found by substituting 100 for[latex]\,x.[/latex]
So his monthly cost would be $5,000.
Writing an Equation for a Linear Function Given Two Points
If[latex]\,f\,[/latex]is a linear function, with[latex]\,f\left(3\right)=-2,[/latex]and[latex]\,f\left(8\right)=1,[/latex] find an equation for the function in slope-intercept form.
Show Solution
We can write the given points using coordinates.
We can then use the points to calculate the slope.
Substitute the slope and the coordinates of one of the points into the point-slope form.
We can use algebra to rewrite the equation in the slope-intercept form.
Try It
If[latex]\,f\left(x\right)\,[/latex]is a linear function, with[latex]\,f\left(2\right)=–11,[/latex] and[latex]\,f\left(4\right)=-25,[/latex] write an equation for the function in slope-intercept form.
Show Solution
[latex]y=-7x+3[/latex]
Modeling Real-World Problems with Linear Functions
In the real world, problems are not always explicitly stated in terms of a function or represented with a graph. Fortunately, we can analyze the problem by first representing it as a linear function and then interpreting the components of the function. As long as we know, or can figure out, the initial value and the rate of change of a linear function, we can solve many different kinds of real-world problems.
How To
Given a linear function[latex]\,f\,[/latex]and the initial value and rate of change, evaluate[latex]\,f\left(c\right).[/latex]
- Determine the initial value and the rate of change (slope).
- Substitute the values into[latex]\,f\left(x\right)=mx+b.[/latex]
- Evaluate the function at[latex]\,x=c.[/latex]
Using a Linear Function to Determine the Number of Songs in a Music Collection
Marcus currently has 200 songs in his music collection. Every month, he adds 15 new songs. Write a formula for the number of songs,[latex]\,N,[/latex] in his collection as a function of time,[latex]\,t,[/latex] the number of months. How many songs will he own at the end of one year?
Show Solution
The initial value for this function is 200 because he currently owns 200 songs, so[latex]\,N\left(0\right)=200,[/latex]which means that[latex]\,b=200.[/latex]
The number of songs increases by 15 songs per month, so the rate of change is 15 songs per month. Therefore we know that[latex]\,m=15.\,[/latex]We can substitute the initial value and the rate of change into the slope-intercept form of a line.
We can write the formula[latex]\,N\left(t\right)=15t+200.[/latex]
With this formula, we can then predict how many songs Marcus will have at the end of one year (12 months). In other words, we can evaluate the function at[latex]\,t=12.[/latex]
Marcus will have 380 songs in 12 months.
Analysis
Notice that N is an increasing linear function. As the input (the number of months) increases, the output (number of songs) increases as well.
Using a Linear Function to Calculate Salary Based on Commission
Working as an insurance salesperson, Ilya earns a base salary plus a commission on each new policy. Therefore, Ilya’s weekly income, [latex]\,I,[/latex] depends on the number of new policies,[latex]\,n,[/latex]he sells during the week. Last week he sold 3 new policies and earned $760 for the week. The week before, he sold 5 new policies and earned $920. Find an equation for[latex]\,I\left(n\right),[/latex] and interpret the meaning of the components of the equation.
Show Solution
The given information gives us two input-output pairs:[latex]\,\left(3,760\right)\,[/latex]and[latex]\,\left(5,\text{92}0\right).\,[/latex]We start by finding the rate of change.
Keeping track of units can help us interpret this quantity. Income increased by $160 when the number of policies increased by 2, so the rate of change is $80 per policy. Therefore, Ilya earns a commission of $80 for each policy sold during the week.
We can then solve for the initial value.
The value of[latex]\,b\,[/latex]is the starting value for the function and represents Ilya’s income when[latex]\,n=0,\,[/latex]or when no new policies are sold. We can interpret this as Ilya’s base salary for the week, which does not depend on the number of policies sold.
We can now write the final equation.
Our final interpretation is that Ilya’s base salary is $520 per week and he earns an additional $80 commission for each policy sold.
Using Tabular Form to Write an Equation for a Linear Function
Table 1 relates the number of rats in a population to time, in weeks. Use the table to write a linear equation.
| number of weeks, w | 0 | 2 | 4 | 6 |
| number of rats, P(w) | 1000 | 1080 | 1160 | 1240 |
Table 1
Show Solution
We can see from the table that the initial value for the number of rats is 1000, so[latex]\,b=1000.[/latex]
Rather than solving for[latex]\,m,[/latex] we can tell from looking at the table that the population increases by 80 for every 2 weeks that pass. This means that the rate of change is 80 rats per 2 weeks, which can be simplified to 40 rats per week.
If we did not notice the rate of change from the table, we could still solve for the slope using any two points from the table. For example, using[latex]\,\left(2,1080\right)\,[/latex]and[latex]\,\left(6,1240\right)[/latex]
Is the initial value always provided in a table of values like Table 1?
No. Sometimes the initial value is provided in a table of values, but sometimes it is not. If you see an input of 0, then the initial value would be the corresponding output. If the initial value is not provided because there is no value of input on the table equal to 0, find the slope, substitute one coordinate pair and the slope into[latex]\,f\left(x\right)=mx+b,\,[/latex]and solve for[latex]\,b.[/latex]
Try It
A new plant food was introduced to a young tree to test its effect on the height of the tree. Table 2 shows the height of the tree, in feet,[latex]\,x\,[/latex]months since the measurements began. Write a linear function,[latex]\,H\left(x\right),[/latex] where[latex]\,x\,[/latex]is the number of months since the start of the experiment.
| x | 0 | 2 | 4 | 8 | 12 |
| H(x) | 12.5 | 13.5 | 14.5 | 16.5 | 18.5 |
Table 2
Show Solution
[latex]H\left(x\right)=0.5x+12.5[/latex]
Graphing Linear Functions
Now that we’ve seen and interpreted graphs of linear functions, let’s take a look at how to create the graphs. There are three basic methods of graphing linear functions. The first is by plotting points and then drawing a line through the points. The second is by using the y-intercept and slope. And the third method is by using transformations of the identity function[latex]\,f\left(x\right)=x.[/latex]
Graphing a Function by Plotting Points
To find points of a function, we can choose input values, evaluate the function at these input values, and calculate output values. The input values and corresponding output values form coordinate pairs. We then plot the coordinate pairs on a grid. In general, we should evaluate the function at a minimum of two inputs in order to find at least two points on the graph. For example, given the function[latex]\,f\left(x\right)=2x,[/latex] we might use the input values 1 and 2. Evaluating the function for an input value of 1 yields an output value of 2, which is represented by the point[latex]\,\left(1,2\right).\,[/latex]Evaluating the function for an input value of 2 yields an output value of 4, which is represented by the point[latex]\,\left(2,4\right).\,[/latex]Choosing three points is often advisable because if all three points do not fall on the same line, we know we made an error.
How To
Given a linear function, graph by plotting points.
- Choose a minimum of two input values.
- Evaluate the function at each input value.
- Use the resulting output values to identify coordinate pairs.
- Plot the coordinate pairs on a grid.
- Draw a line through the points.
Graphing by Plotting Points
Graph[latex]\,f\left(x\right)=-\frac{2}{3}x+5\,[/latex]by plotting points.
Show Solution
Begin by choosing input values. This function includes a fraction with a denominator of 3, so let’s choose multiples of 3 as input values. We will choose 0, 3, and 6.
Evaluate the function at each input value, and use the output value to identify coordinate pairs.
Plot the coordinate pairs and draw a line through the points. Figure 10 represents the graph of the function[latex]\,f\left(x\right)=-\frac{2}{3}x+5.[/latex]
Analysis
The graph of the function is a line, as expected for a linear function. In addition, the graph has a downward slant, which indicates a negative slope. This is also expected from the negative, constant rate of change in the equation for the function.
Try It
Graph[latex]\,f\left(x\right)=-\frac{3}{4}x+6\,[/latex]by plotting points.
Show Solution
Graphing a Function Using y-intercept and Slope
Another way to graph linear functions is by using specific characteristics of the function rather than plotting points. The first characteristic is its y-intercept, which is the point at which the input value is zero. To find the y-intercept, we can set[latex]\,x=0\,[/latex]in the equation.
The other characteristic of the linear function is its slope.
Let’s consider the following function.
The slope is[latex]\,\frac{1}{2}.\,[/latex]Because the slope is positive, we know the graph will slant upward from left to right. The y-intercept is the point on the graph when[latex]\,x=0.\,[/latex]The graph crosses the y-axis at[latex]\,\left(0,1\right).\,[/latex]Now we know the slope and the y-intercept. We can begin graphing by plotting the point[latex]\,\left(0,1\right).\,[/latex]We know that the slope is the change in the y-coordinate over the change in the x-coordinate. This is commonly referred to as rise over run,[latex]\,m=\frac{\text{rise}}{\text{run}}.\,[/latex]From our example, we have[latex]\,m=\frac{1}{2},[/latex]which means that the rise is 1 and the run is 2. So starting from our y-intercept[latex]\,\left(0,1\right),[/latex] we can rise 1 and then run 2, or run 2 and then rise 1. We repeat until we have a few points, and then we draw a line through the points, as shown in Figure 11.
Graphical Interpretation of a Linear Function
In the equation[latex]\,f\left(x\right)=mx+b[/latex]
- [latex]b\,[/latex]is the y-intercept of the graph and indicates the point[latex]\,\left(0,b\right)\,[/latex]at which the graph crosses the y-axis.
- [latex]m\,[/latex]is the slope of the line and indicates the vertical displacement (rise) and horizontal displacement (run) between each successive pair of points. Recall the formula for the slope:
Do all linear functions have y-intercepts?
Yes. All linear functions cross the y-axis and therefore have y-intercepts. (Note: A vertical line that is parallel to the y-axis does not have a y-intercept, but it is not a function.)
How To
Given the equation for a linear function, graph the function using the y-intercept and slope.
- Evaluate the function at an input value of zero to find the y-intercept.
- Identify the slope as the rate of change of the input value.
- Plot the point represented by the y-intercept.
- Use[latex]\,\frac{\text{rise}}{\text{run}}\,[/latex]to determine at least two more points on the line.
- Sketch the line that passes through the points.
Graphing by Using the y-intercept and Slope
Graph[latex]\,f\left(x\right)=-\frac{2}{3}x+5\,[/latex]using the y-intercept and slope.
Show Solution
Evaluate the function at[latex]\,x=0\,[/latex]to find the y-intercept. The output value when[latex]\,x=0\,[/latex]is 5, so the graph will cross the y-axis at[latex]\,\left(0,5\right).[/latex]
According to the equation for the function, the slope of the line is[latex]\,-\frac{2}{3}.\,[/latex]This tells us that for each vertical decrease in the “rise” of[latex]\,–2\,[/latex]units, the “run” increases by 3 units in the horizontal direction. We can now graph the function by first plotting the y-intercept on the graph in Figure 12. From the initial value[latex]\,\left(0,5\right)\,[/latex]we move down 2 units and to the right 3 units. We can extend the line to the left and right by repeating and then drawing a line through the points.
Analysis
The graph slants downward from left to right, which means it has a negative slope as expected.
Try It
Find a point on the graph we drew in Figure 12 that has a negative x-value.
Show Solution
Possible answers include[latex]\left(-3,7\right),\,[/latex]
[latex]\left(-6,9\right),\,[/latex]or[latex]\,\left(-9,11\right).[/latex]
Graphing a Function Using Transformations
Another option for graphing is to use a transformation of the identity function[latex]\,f\left(x\right)=x.\,[/latex]A function may be transformed by a shift up, down, left, or right. A function may also be transformed using a reflection, stretch, or compression.
Vertical Stretch or Compression
In the equation[latex]\,f\left(x\right)=mx,[/latex] the[latex]\,m\,[/latex]is acting as the vertical stretch or compression of the identity function. When[latex]\,m\,[/latex]is negative, there is also a vertical reflection of the graph. Notice in Figure 14 that multiplying the equation of[latex]\,f\left(x\right)=x\,[/latex]by[latex]\,m\,[/latex]stretches the graph of[latex]\,f\,[/latex]by a factor of[latex]\,m\,[/latex]units if[latex]\,m>\text{1}\,[/latex]and compresses the graph of[latex]\,f\,[/latex]by a factor of[latex]\,m\,[/latex]units if[latex]\,0 \lt m \lt 1.\,[/latex]This means the larger the absolute value of[latex]\,m,\,[/latex]the steeper the slope.
Vertical Shift
In[latex]\,f\left(x\right)=mx+b,[/latex] the[latex]\,b\,[/latex]acts as the vertical shift, moving the graph up and down without affecting the slope of the line. Notice in Figure 14 that adding a value of [latex]b[/latex] to the equation of[latex]f\left(x\right)=x[/latex] shifts the graph of[latex]f[/latex] a total of [latex]b[/latex] units up if [latex]b[/latex] is positive and [latex]|b|[/latex] units down if [latex]b[/latex] is negative.
Using vertical stretches or compressions along with vertical shifts is another way to look at identifying different types of linear functions. Although this may not be the easiest way to graph this type of function, it is still important to practice each method.
How To
Given the equation of a linear function, use transformations to graph the linear function in the form[latex]\,f\left(x\right)=mx+b.[/latex]
- Graph[latex]\,f\left(x\right)=x.[/latex]
- Vertically stretch or compress the graph by a factor[latex]\,m.[/latex]
- Shift the graph up or down[latex]\,b\,[/latex]units.
Graphing by Using Transformations
Graph[latex]\,f\left(x\right)=\frac{1}{2}x-3\,[/latex]using transformations.
Show Solution
The equation for the function shows that[latex]\,m=\frac{1}{2}\,[/latex]so the identity function is vertically compressed by[latex]\,\frac{1}{2}.\,[/latex]The equation for the function also shows that[latex]\,b=-3\,[/latex]so the identity function is vertically shifted down 3 units. First, graph the identity function, and show the vertical compression as in Figure 15.
Then show the vertical shift as in Figure 16.
Try It
Graph[latex]\,f\left(x\right)=4+2x\,[/latex]using transformations.
Show Solution
In the Graphing by Transformation example [latex]\,f\left(x\right)=\frac{1}{2}x-3\,[/latex], could we have sketched the graph by reversing the order of the transformations?
No. The order of the transformations follows the order of operations. When the function is evaluated at a given input, the corresponding output is calculated by following the order of operations. This is why we performed the compression first. For example, following the order: Let the input be 2.
Writing the Equation for a Function from the Graph of a Line
Earlier, we wrote the equation for a linear function from a graph. Now we can extend what we know about graphing linear functions to analyze graphs a little more closely. Begin by taking a look at Figure 17. We can see right away that the graph crosses the y-axis at the point[latex]\,\left(0,\text{4}\right)\,[/latex], so this is the y-intercept.
Then we can calculate the slope by finding the rise and run. We can choose any two points, but let’s look at the point[latex]\,\left(–2,0\right).\,[/latex]To get from this point to the y-intercept, we must move up 4 units (rise) and to the right 2 units (run). So the slope must be
Substituting the slope and y-intercept into the slope-intercept form of a line gives
How To
Given a graph of linear function, find the equation to describe the function.
- Identify the y-intercept of an equation.
- Choose two points to determine the slope.
- Substitute the y-intercept and slope into the slope-intercept form of a line.
Matching Linear Functions to Their Graphs
Match each equation of the linear functions with one of the lines in Figure 18.
Show Solution
Analyze the information for each function.
- This function has a slope of 2 and a y-intercept of 3. It must pass through the point (0, 3) and slant upward from left to right. We can use two points to find the slope, or we can compare it with the other functions listed. Function[latex]\,g\,[/latex]has the same slope, but a different y-intercept. Lines I and III have the same slant because they have the same slope. Line III does not pass through[latex]\,\left(0,\text{3}\right)\,[/latex]so[latex]\,f\,[/latex]must be represented by line I.
- This function also has a slope of 2, but a y-intercept of[latex]\,-3.\,[/latex]It must pass through the point[latex]\,\left(0,-3\right)\,[/latex]and slant upward from left to right. It must be represented by line III.
- This function has a slope of –2 and a y-intercept of 3. This is the only function listed with a negative slope, so it must be represented by line IV because it slants downward from left to right.
- This function has a slope of[latex]\,\frac{1}{2}\,[/latex]and a y-intercept of 3. It must pass through the point (0, 3) and slant upward from left to right. Lines I and II pass through[latex]\,\left(0,\text{3}\right),[/latex] but the slope of[latex]\,j\,[/latex]is less than the slope of[latex]\,f\,[/latex]so the line for[latex]\,j\,[/latex]must be flatter. This function is represented by Line II.
Now we can re-label the lines, as in Figure 19.
Finding the x-intercept of a Line
So far we have been finding the y-intercepts of a function: the point at which the graph of the function crosses the y-axis. Recall that a function may also have an x-intercept, which is the x-coordinate of the point where the graph of the function crosses the x-axis. In other words, it is the input value when the output value is zero.
To find the x-intercept, set a function[latex]\,f\left(x\right)\,[/latex]equal to zero and solve for the value of[latex]\,x.\,[/latex]For example, consider the function shown.
Set the function equal to 0 and solve for[latex]\,x.[/latex]
The graph of the function crosses the x-axis at the point[latex]\,\left(2,\text{0}\right).[/latex]
Do all linear functions have x-intercepts?
No. However, linear functions of the form[latex]\,y=c,[/latex] where[latex]\,c\,[/latex]is a nonzero real number are the only examples of linear functions with no x-intercept. For example,[latex]\,y=5\,[/latex]is a horizontal line 5 units above the x-axis. This function has no x-intercepts, as shown in Figure 20.
x-intercept
The x-intercept of the function is value of[latex]\,x\,[/latex]when[latex]\,f\left(x\right)=0.\,[/latex]It can be solved by the equation[latex]\,0=mx+b.[/latex]
Finding an x-intercept
Find the x-intercept of[latex]\,f\left(x\right)=\frac{1}{2}x-3.[/latex]
Show Solution
Set the function equal to zero to solve for[latex]\,x.[/latex]
The graph crosses the x-axis at the point[latex]\,\left(6,\text{0}\right).[/latex]
Analysis
A graph of the function is shown in Figure 21. We can see that the x-intercept is[latex]\,\left(6,\text{0}\right)\,[/latex]as we expected.
Try It
Find the x-intercept of[latex]\,f\left(x\right)=\frac{1}{4}x-4.[/latex]
Show Solution
[latex]\,\left(16,\text{ 0}\right)[/latex]
Describing Horizontal and Vertical Lines
There are two special cases of lines on a graph—horizontal and vertical lines. A horizontal line indicates a constant output, or y-value. In Figure 22, we see that the output has a value of 2 for every input value. The change in outputs between any two points, therefore, is 0. In the slope formula, the numerator is 0, so the slope is 0. If we use[latex]\,m=0\,[/latex]in the equation[latex]\,f\left(x\right)=mx+b,[/latex] the equation simplifies to[latex]\,f\left(x\right)=b.\,[/latex]In other words, the value of the function is a constant. This graph represents the function[latex]\,f\left(x\right)=2.[/latex]
A vertical line indicates a constant input, or x-value. We can see that the input value for every point on the line is 2, but the output value varies. Because this input value is mapped to more than one output value, a vertical line does not represent a function. Notice that between any two points, the change in the input values is zero. In the slope formula, the denominator will be zero, so the slope of a vertical line is undefined.
A vertical line, such as the one in Figure 24, has an x-intercept, but no y-intercept unless it’s the line[latex]\,x=0.\,[/latex]This graph represents the line[latex]\,x=2.[/latex]
Horizontal and Vertical Lines
Lines can be horizontal or vertical.
A horizontal line is a line defined by an equation in the form[latex]\,f\left(x\right)=b.[/latex]
A vertical line is a line defined by an equation in the form[latex]\,x=a.[/latex]
Writing the Equation of a Horizontal Line
Write the equation of the line graphed in Figure 25.
Show Solution
For any x-value, the y-value is[latex]\,-4,\,[/latex]so the equation is[latex]\,y=-4.[/latex]
Writing the Equation of a Vertical Line
Write the equation of the line graphed in Figure 26.
Show Solution
The constant x-value is[latex]\,7,[/latex] so the equation is[latex]\,x=7.[/latex]
Key Concepts
- Linear functions can be represented in words, function notation, tabular form, and graphical form.
- An increasing linear function results in a graph that slants upward from left to right and has a positive slope. A decreasing linear function results in a graph that slants downward from left to right and has a negative slope. A constant linear function results in a graph that is a horizontal line.
- Slope is a rate of change. The slope of a linear function can be calculated by dividing the difference between y-values by the difference in corresponding x-values of any two points on the line.
- An equation for a linear function can be written from a graph.
- The equation for a linear function can be written if the slope[latex]\,m\,[/latex]and initial value[latex]\,b\,[/latex]are known.
- A linear function can be used to solve real-world problems given information in different forms.
- Linear functions can be graphed by plotting points or by using the y-intercept and slope.
- Graphs of linear functions may be transformed by using shifts up, down, left, or right, as well as through stretches, compressions, and reflections.
- The equation for a linear function can be written by interpreting the graph.
- The x-intercept is the point at which the graph of a linear function crosses the x-axis.
- Horizontal lines are written in the form [latex]\,f\left(x\right)=b.\,[/latex]
- Vertical lines are written in the form [latex]\,x=b.\,[/latex]
- Parallel lines have the same slope. Perpendicular lines have negative reciprocal slopes, assuming neither is vertical.
- A line parallel to another line, passing through a given point, may be found by substituting the slope value of the line and the x– and y-values of the given point into the equation,[latex]\,f\left(x\right)=mx+b,\,[/latex]and using the[latex]\,b\,[/latex]that results. Similarly, the point-slope form of an equation can also be used.
- A line perpendicular to another line, passing through a given point, may be found in the same manner, with the exception of using the negative reciprocal slope.
Section Exercises
Verbal
- Terry is skiing down a steep hill. Terry’s elevation,[latex]\,E\left(t\right),[/latex] in feet after[latex]\,t\,[/latex]seconds is given by[latex]\,E\left(t\right)=3000-70t.\,[/latex]Write a complete sentence describing Terry’s starting elevation and how it is changing over time.
Show Solution
Terry starts at an elevation of 3000 feet and descends 70 feet per second.
- Jessica is walking home from a friend’s house. After 2 minutes she is 1.4 miles from home. Twelve minutes after leaving, she is 0.9 miles from home. What is her rate in miles per hour?
- A boat is 100 miles away from the marina, sailing directly toward it at 10 miles per hour. Write an equation for the distance of the boat from the marina after t hours.
Show Solution
[latex]d\left(t\right)=100-10t[/latex]
- If the graphs of two linear functions are perpendicular, describe the relationship between the slopes and the y-intercepts.
- If a horizontal line has the equation[latex]\,f\left(x\right)=a\,[/latex]and a vertical line has the equation[latex]\,x=a,\,[/latex]what is the point of intersection? Explain why what you found is the point of intersection.
Show Solution
The point of intersection is[latex]\,\left(a,\text{ }a\right).\,[/latex]This is because for the horizontal line, all of the[latex]\,y\,[/latex]coordinates are[latex]\,a\,[/latex]and for the vertical line, all of the[latex]\,x\,[/latex]coordinates are[latex]\,a.\,[/latex]The point of intersection is on both lines and therefore will have these two characteristics.
Algebraic
For the following exercises, determine whether the equation of the curve can be written as a linear function.
- [latex]y=\frac{1}{4}x+6[/latex]
- [latex]y=3x-5[/latex]
Show Solution
Yes
- [latex]y=3{x}^{2}-2[/latex]
- [latex]3x+5y=15[/latex]
Show Solution
Yes
- [latex]3{x}^{2}+5y=15[/latex]
- [latex]3x+5{y}^{2}=15[/latex]
Show Solution
No
- [latex]-2{x}^{2}+3{y}^{2}=6[/latex]
- [latex]-\frac{x-3}{5}=2y[/latex]
Show Solution
Yes
For the following exercises, determine whether each function is increasing or decreasing.
- [latex]f\left(x\right)=4x+3[/latex]
- [latex]g\left(x\right)=5x+6[/latex]
Show Solution
Increasing
- [latex]a\left(x\right)=5-2x[/latex]
- [latex]b\left(x\right)=8-3x[/latex]
Show Solution
Decreasing
- [latex]h\left(x\right)=-2x+4[/latex]
- [latex]k\left(x\right)=-4x+1[/latex]
Show Solution
Decreasing
- [latex]j\left(x\right)=\frac{1}{2}x-3[/latex]
- [latex]p\left(x\right)=\frac{1}{4}x-5[/latex]
Show Solution
Increasing
- [latex]n\left(x\right)=-\frac{1}{3}x-2[/latex]
- [latex]m\left(x\right)=-\frac{3}{8}x+3[/latex]
Show Solution
Decreasing
For the following exercises, find the slope of the line that passes through the two given points.
- [latex]\left(2,4\right)\,[/latex]and[latex]\,\left(4,\text{10}\right)[/latex]
- [latex]\left(1,\text{5}\right)\,[/latex]and[latex]\,\left(4,\text{11}\right)[/latex]
Show Solution
2
- [latex]\left(–1,\text{4}\right)\,[/latex]and[latex]\,\left(5,\text{2}\right)[/latex]
- [latex]\left(8,–2\right)\,[/latex]and[latex]\,\left(4,6\right)[/latex]
Show Solution
–2
- [latex]\left(6,11\right)\,[/latex]and[latex]\,\left(–4,\text{3}\right)[/latex]
For the following exercises, given each set of information, find a linear equation satisfying the conditions, if possible.
- [latex]f\left(-5\right)=-4,\,[/latex]and[latex]\,f\left(5\right)=2[/latex]
Show Solution
[latex]y=\frac{3}{5}x-1[/latex]
- [latex]f\left(-1\right)=4,\,[/latex]and[latex]\,f\left(5\right)=1[/latex]
- Passes through[latex]\,\left(2,4\right)\,[/latex]and[latex]\,\left(4,10\right)[/latex]
Show Solution
[latex]y=3x-2[/latex]
- Passes through[latex]\,\left(1,5\right)\,[/latex]and[latex]\,\left(4,11\right)[/latex]
- Passes through[latex]\,\left(-1,\text{4}\right)\,[/latex]and[latex]\,\left(5,\text{2}\right)[/latex]
Show Solution
[latex]y=-\frac{1}{3}x+\frac{11}{3}[/latex]
- Passes through[latex]\,\left(-2,\text{8}\right)\,[/latex]and[latex]\,\left(4,\text{6}\right)[/latex]
- x intercept at[latex]\,\left(-2,\text{0}\right)\,[/latex]and y intercept at[latex]\,\left(0,-3\right)[/latex]
Show Solution
[latex]y=-1.5x-3[/latex]
- x intercept at[latex]\,\left(-5,\text{0}\right)\,[/latex]and y intercept at[latex]\,\left(0,\text{4}\right)[/latex]
For the following exercises, determine whether the lines given by the equations below are parallel, perpendicular, or neither.
- [latex]\begin{array}{l}4x-7y=10\hfill \\ 7x+4y=1\hfill \end{array}[/latex]
Show Solution
perpendicular
- [latex]\begin{array}{c}3y+x=12\\ -y=8x+1\end{array}[/latex]
- [latex]\begin{array}{c}3y+4x=12\\ -6y=8x+1\end{array}[/latex]
Show Solution
parallel
- [latex]\begin{array}{l}6x-9y=10\hfill \\ 3x+2y=1\hfill \end{array}[/latex]
For the following exercises, find the x– and y-intercepts of each equation.
- [latex]f\left(x\right)=-x+2[/latex]
Show Solution
[latex]\begin{array}{l}f\left(0\right)=-\left(0\right)+2\\ f\left(0\right)=2\\ y-\mathrm{int}:\left(0,2\right)\\ 0=-x+2\\ x-\mathrm{int}:\left(2,0\right)\end{array}[/latex]
- [latex]g\left(x\right)=2x+4[/latex]
- [latex]h\left(x\right)=3x-5[/latex]
Show Solution
[latex]\begin{array}{l}h\left(0\right)=3\left(0\right)-5\\ h\left(0\right)=-5\\ y-\mathrm{int}:\left(0,-5\right)\\ 0=3x-5\\ x-\mathrm{int}:\left(\frac{5}{3},0\right)\end{array}[/latex]
- [latex]k\left(x\right)=-5x+1[/latex]
- [latex]-2x+5y=20[/latex]
Show Solution
[latex]\begin{array}{l}-2x+5y=20\\ -2\left(0\right)+5y=20\\ 5y=20\\ y=4\\ y-\mathrm{int}:\left(0,4\right)\\ -2x+5\left(0\right)=20\\ x=-10\\ x-\mathrm{int}:\left(-10,0\right)\end{array}[/latex]
- [latex]7x+2y=56[/latex]
For the following exercises, use the descriptions of each pair of lines given below to find the slopes of Line 1 and Line 2. Is each pair of lines parallel, perpendicular, or neither?
- Line 1: Passes through[latex]\,\left(0,6\right)\,[/latex]and[latex]\,\left(3,-24\right)[/latex]
Line 2: Passes through[latex]\,\left(-1,19\right)\,[/latex]and[latex]\,\left(8,-71\right)[/latex]
Show Solution
Line 1: m = –10 Line 2: m = –10 Parallel
- Line 1: Passes through[latex]\,\left(-8,-55\right)\,[/latex]and[latex]\,\left(10,89\right)[/latex]
Line 2: Passes through[latex]\,\left(9,-44\right)\,[/latex]and[latex]\,\left(4,-14\right)[/latex]
- Line 1: Passes through[latex]\,\left(2,3\right)\,[/latex]and[latex]\,\left(4,-1\right)[/latex]
Line 2: Passes through[latex]\,\left(6,3\right)\,[/latex]and[latex]\,\left(8,5\right)[/latex]
Show Solution
Line 1: m = –2 Line 2: m = 1 Neither
- Line 1: Passes through[latex]\,\left(1,7\right)\,[/latex]and[latex]\,\left(5,5\right)[/latex]
Line 2: Passes through[latex]\,\left(-1,-3\right)\,[/latex]and[latex]\,\left(1,1\right)[/latex]
- Line 1: Passes through[latex]\,\left(2,5\right)\,[/latex]and[latex]\,\left(5,-1\right)[/latex]
Line 2: Passes through[latex]\,\left(-3,7\right)\,[/latex]and[latex]\,\left(3,-5\right)[/latex]
Show Solution
[latex]\text{Line 1}: m=–2 \text{Line 2}: m=–2 \text{Parallel}[/latex]
For the following exercises, write an equation for the line described.
- Write an equation for a line parallel to[latex]\,f\left(x\right)=-5x-3\,[/latex]and passing through the point[latex]\,\left(2,\text{–}12\right).[/latex]
- Write an equation for a line parallel to[latex]\,g\left(x\right)=3x-1\,[/latex]and passing through the point[latex]\,\left(4,9\right).[/latex]
Show Solution
[latex]y=3x-3[/latex]
- Write an equation for a line perpendicular to[latex]\,h\left(t\right)=-2t+4\,[/latex]and passing through the point[latex]\,\left(-4,–1\right).[/latex]
- Write an equation for a line perpendicular to[latex]\,p\left(t\right)=3t+4\,[/latex]and passing through the point[latex]\,\left(3,1\right).[/latex]
Show Solution
[latex]y=-\frac{1}{3}t+2[/latex]
Graphical
For the following exercises, find the slope of the line graphed.
For the following exercises, write an equation for the line graphed.
Show Solution
[latex]y=-\frac{5}{4}x+5[/latex]
Show Solution
[latex]y=3x-1[/latex]
Show Solution
[latex]y=-2.5[/latex]
For the following exercises, match the given linear equation with its graph in Figure 27.
- [latex]f\left(x\right)=-x-1[/latex]
- [latex]f\left(x\right)=-2x-1[/latex]
Show Solution
F
- [latex]f\left(x\right)=-\frac{1}{2}x-1[/latex]
- [latex]f\left(x\right)=2[/latex]
Show Solution
C
- [latex]f\left(x\right)=2+x[/latex]
- [latex]f\left(x\right)=3x+2[/latex]
Show Solution
A
For the following exercises, sketch a line with the given features.
- An x-intercept of[latex]\,\left(–4,\text{0}\right)\,[/latex]and y-intercept of[latex]\,\left(0,\text{–2}\right)[/latex]
- An x-intercept[latex]\,\left(–2,\text{0}\right)\,[/latex]and y-intercept of[latex]\,\left(0,\text{4}\right)[/latex]
Show Solution
- A y-intercept of[latex]\,\left(0,\text{7}\right)\,[/latex]and slope[latex]\,-\frac{3}{2}[/latex]
- A y-intercept of[latex]\,\left(0,\text{3}\right)\,[/latex]and slope[latex]\,\frac{2}{5}[/latex]
Show Solution
- Passing through the points[latex]\,\left(–6,\text{–2}\right)\,[/latex]and[latex]\,\left(6,\text{–6}\right)[/latex]
- Passing through the points[latex]\,\left(–3,\text{–4}\right)\,[/latex]and[latex]\,\left(3,\text{0}\right)[/latex]
Show Solution
For the following exercises, sketch the graph of each equation.
- [latex]f\left(x\right)=-2x-1[/latex]
- [latex]f\left(x\right)=-3x+2[/latex]
Show Solution
- [latex]f\left(x\right)=\frac{1}{3}x+2[/latex]
- [latex]f\left(x\right)=\frac{2}{3}x-3[/latex]
Show Solution
- [latex]f\left(t\right)=3+2t[/latex]
- [latex]p\left(t\right)=-2+3t[/latex]
Show Solution
- [latex]x=3[/latex]
- [latex]x=-2[/latex]
Show Solution
- [latex]r\left(x\right)=4[/latex]
For the following exercises, write the equation of the line shown in the graph.
Show Solution
[latex]y=\text{3}[/latex]
Show Solution
[latex]x=-3[/latex]
Numeric
For the following exercises, which of the tables could represent a linear function? For each that could be linear, find a linear equation that models the data.
-
[latex]x[/latex] 0 5 10 15 [latex]g\left(x\right)[/latex] 5 –10 –25 –40
Show Solution
Linear,[latex]\,g\left(x\right)=-3x+5[/latex]
-
[latex]x[/latex] 0 5 10 15 [latex]h\left(x\right)[/latex] 5 30 105 230
-
[latex]x[/latex] 0 5 10 15 [latex]f\left(x\right)[/latex] –5 20 45 70
Show Solution
Linear,[latex]\,f\left(x\right)=5x-5[/latex]
-
x 5 10 20 25 k(x) 13 28 58 73
-
[latex]x[/latex] 0 2 4 6 [latex]g\left(x\right)[/latex] 6 –19 –44 –69
Show Solution
Linear,[latex]\,g\left(x\right)=-\frac{25}{2}x+6[/latex]
-
[latex]x[/latex] 2 4 8 10 [latex]h\left(x\right)[/latex] 13 23 43 53
-
[latex]x[/latex] 2 4 6 8 [latex]f\left(x\right)[/latex] –4 16 36 56
Show Solution
Linear,[latex]\,f\left(x\right)=10x-24[/latex]
-
[latex]x[/latex] 0 2 6 8 [latex]k\left(x\right)[/latex] 6 31 106 231
Technology
For the following exercises, use a calculator or graphing technology to complete the task.
- If[latex]\,f\,[/latex]is a linear function,[latex]\,f\left(0.1\right)=11.5, \text{and} f\left(0.4\right)=–5.9,\,[/latex]find an equation for the function.
Show Solution
[latex]f\left(x\right)=-58x+17.3[/latex]
- Graph the function[latex]\,f\,[/latex]on a domain of[latex]\,\left[–10,10\right]:f\left(x\right)=0.02x-0.01.\,[/latex]Enter the function in a graphing utility. For the viewing window, set the minimum value of[latex]\,x\,[/latex]to be[latex]\,-10\,[/latex]and the maximum value of[latex]\,x\,[/latex]to be[latex]\,10.[/latex]
- Graph the function[latex]\,f\,[/latex]on a domain of[latex]\,\left[–10,10\right]:fx)=2,500x+4,000[/latex]
Show Solution
- The table below shows the input,[latex]\,w,[/latex] and output,[latex]\,k,[/latex] for a linear function[latex]\,k.\,[/latex]a. Fill in the missing values of the table. b. Write the linear function[latex]\,k,[/latex] rounded to 3 decimal places.
| w | –10 | 5.5 | 67.5 | b |
| k | 30 | –26 | a | –44 |
- The table below shows the input,[latex]\,p,[/latex] and output,[latex]\,q,[/latex] for a linear function[latex]\,q.\,[/latex]a. Fill in the missing values of the table. b. Write the linear function[latex]\,k.[/latex]
| p | 0.5 | 0.8 | 12 | b |
| q | 400 | 700 | a | 1,000,000 |
Show Solution
a. [latex]a=11,900[/latex] and [latex]b=1000.1[/latex]
b. [latex]𝑞(𝑝)=1000𝑝–100[/latex]
- Graph the linear function[latex]\,f\,[/latex]on a domain of[latex]\,\left[-10,10\right]\,[/latex]for the function whose slope is[latex]\,\frac{1}{8}\,[/latex]and y-intercept is[latex]\,\frac{31}{16}.\,[/latex]Label the points for the input values of[latex]\,-10\,[/latex]and[latex]\,10.[/latex]
- Graph the linear function[latex]\,f\,[/latex]on a domain of[latex]\,\left[-0.1,0.1\right]\,[/latex]for the function whose slope is 75 and y-intercept is[latex]\,-22.5.\,[/latex]Label the points for the input values of[latex]\,-0.1\,[/latex]and[latex]\,0.1.[/latex]
Show Solution
- Graph the linear function[latex]\,f\,[/latex]where[latex]\,f\left(x\right)=ax+b\,[/latex]on the same set of axes on a domain of[latex]\,\left[-4,4\right]\,[/latex]for the following values of[latex]\,a\,[/latex]and[latex]\,b.[/latex]
- [latex]a=2;b=3[/latex]
- [latex]a=2;b=4[/latex]
- [latex]a=2;b=–4[/latex]
- [latex]a=2;b=–5[/latex]
Extensions
- Find the value of[latex]\,x\,[/latex]if a linear function goes through the following points and has the following slope:[latex]\,\left(x,2\right),\left(-4,6\right),\,m=3[/latex]
- Find the value of y if a linear function goes through the following points and has the following slope:[latex]\,\left(10,y\right),\left(25,100\right),\,m=-5[/latex]
Show Solution
y = 175
- Find the equation of the line that passes through the following points:
[latex]\,\left(a,\text{ }b\right)\,[/latex]and[latex]\,\left(a,\text{ }b+1\right)[/latex]
- Find the equation of the line that passes through the following points:
[latex]\left(2a,b\right)\,[/latex]and[latex]\,\left(a,b+1\right)[/latex]
- Find the equation of the line that passes through the following points:
[latex]\left(a,0\right)[/latex]and[latex]\,\left(c,d\right)[/latex]
- Find the equation of the line parallel to the line[latex]\,g\left(x\right)=-0.\text{01}x\text{+2}\text{.01}\,[/latex]through the point[latex]\,\left(1,\text{2}\right).[/latex]
- Find the equation of the line perpendicular to the line[latex]\,g\left(x\right)=-0.\text{01}x\text{+2}\text{.01}\,[/latex]through the point[latex]\,\left(1,\text{2}\right).[/latex]
For the following exercises, use the functions[latex]\,f\left(x\right)=-0.\text{1}x\text{+200 and }g\left(x\right)=20x+0.1.[/latex]
- Find the point of intersection of the lines[latex]\,f\,[/latex]and[latex]\,g.[/latex]
Show Solution
[latex]\text{ }\left(\frac{1999}{201},\frac{400,001}{2010}\right)[/latex]
- Where is[latex]\,f\left(x\right)\,[/latex]greater than[latex]\,g\left(x\right)?\,[/latex]Where is[latex]\,g\left(x\right)\,[/latex]greater than[latex]\,f\left(x\right)?[/latex]
Real-World Applications
- At noon, a barista notices that she has $20 in her tip jar. If she makes an average of $0.50 from each customer, how much will she have in her tip jar if she serves[latex]\,n\,[/latex]more customers during her shift?
Show Solution
[latex]20+0.5n[/latex]
- A gym membership with two personal training sessions costs $125, while gym membership with five personal training sessions costs $260. What is cost per session?
- A clothing business finds there is a linear relationship between the number of shirts,[latex]\,n,[/latex] it can sell and the price,[latex]\,p,[/latex] it can charge per shirt. In particular, historical data shows that 1,000 shirts can be sold at a price of[latex]\,$30,[/latex] while 3,000 shirts can be sold at a price of $22. Find a linear equation in the form[latex]\,p\left(n\right)=mn+b\,[/latex]that gives the price[latex]\,p\,[/latex]they can charge for[latex]\,n\,[/latex]shirts.
Show Solution
[latex]p\left(n\right)=-0.004n+34[/latex]
- A phone company charges for service according to the formula [latex]\,C\left(n\right)=24+0.1n,[/latex]where[latex]\,n\,[/latex]is the number of minutes talked, and[latex]\,C\left(n\right)\,[/latex]is the monthly charge, in dollars. Find and interpret the rate of change and initial value.
- A farmer finds there is a linear relationship between the number of bean stalks,[latex]\,n,[/latex]she plants and the yield,[latex]\,y,[/latex]each plant produces. When she plants 30 stalks, each plant yields 30 oz of beans. When she plants 34 stalks, each plant produces 28 oz of beans. Find a linear relationship in the form[latex]\,y=mn+b\,[/latex]that gives the yield when[latex]\,n\,[/latex]stalks are planted.
Show Solution
[latex]y=-0.5n+45[/latex]
- A city’s population in the year 1960 was 287,500. In 1989 the population was 275,900. Compute the rate of growth of the population and make a statement about the population rate of change in people per year.
- A town’s population has been growing linearly. In 2003, the population was 45,000, and the population has been growing by 1,700 people each year. Write an equation,[latex]\,P\left(t\right),[/latex]for the population[latex]\,t\,[/latex]years after 2003.
Show Solution
[latex]P\left(t\right)=1700t+45,000[/latex]
- Suppose that average annual income (in dollars) for the years 1990 through 1999 is given by the linear function:[latex]\,I\left(x\right)=1054x+23,286,[/latex] where[latex]\,x\,[/latex]is the number of years after 1990. Which of the following interprets the slope in the context of the problem?
- As of 1990, average annual income was $23,286.
- In the ten-year period from 1990–1999, average annual income increased by a total of $1,054.
- Each year in the decade of the 1990s, average annual income increased by $1,054.
- Average annual income rose to a level of $23,286 by the end of 1999.
- When the temperature is 0 degrees Celsius, the Fahrenheit temperature is 32. When the Celsius temperature is 100, the corresponding Fahrenheit temperature is 212. Express the Fahrenheit temperature as a linear function of[latex]\,C,[/latex] the Celsius temperature,[latex]\,F\left(C\right).[/latex]
- Find the rate of change of Fahrenheit temperature for each unit change temperature of Celsius.
- Find and interpret[latex]\,F\left(28\right).[/latex]
- Find and interpret[latex]\,F\left(–40\right).[/latex]
Show Solution
- [latex]\text{Rate of change =}\frac{\Delta F}{\Delta C}=\frac{212-32}{100-0}=1.8\text{ degrees F for one degree change in C}[/latex]
- [latex]F\left(28\right)=1.8\left(28\right)+32=82.4\text{ degrees F is 28 degrees C}[/latex]
- [latex]F\left(-40\right)=1.8\left(-40\right)+32=-40\text{ degrees F is -40 degrees C}[/latex]
Glossary
- decreasing linear function
- a function with a negative slope: If[latex]\,f\left(x\right)=mx+b, \text{then} m0.[/latex]
- horizontal line
- a line defined by[latex]\,f\left(x\right)=b,[/latex]where[latex]\,b\,[/latex]is a real number. The slope of a horizontal line is 0.
- increasing linear function
- a function with a positive slope: If[latex]\,f\left(x\right)=mx+b, \text{then} m>0.[/latex]
- linear function
- a function with a constant rate of change that is a polynomial of degree 1, and whose graph is a straight line
- parallel lines
- two or more lines with the same slope
- perpendicular lines
- two lines that intersect at right angles and have slopes that are negative reciprocals of each other
- point-slope form
- the equation for a line that represents a linear function of the form[latex]\,y-{y}_{1}=m\left(x-{x}_{1}\right)[/latex]
- slope
- the ratio of the change in output values to the change in input values; a measure of the steepness of a line
- slope-intercept form
- the equation for a line that represents a linear function in the form[latex]\,f\left(x\right)=mx+b[/latex]
- vertical line
- a line defined by[latex]\,x=a,[/latex] where[latex]\,a\,[/latex]is a real number. The slope of a vertical line is undefined.
Media Attributions
- 4.2 Figure 1 Train © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 2 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 3 Graph of D(t)=83t+250 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 4 Diver © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 5 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 6 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 7 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 8 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 9 © OpneStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 10 © OpenStax Algebra and Trignometry is licensed under a CC BY (Attribution) license
- Graph by Plotting Points y=-.75x+6 © Ginny Bradley is licensed under a CC BY (Attribution) license
- 4.2 Figure 11 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 12 © OpenStax Algebra and Trignometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 13 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 14 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 15 © OpenStax Algebra and Trignometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 16 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- y=4+2x © Ginny Bradley is licensed under a Public Domain license
- 4.2 Figure 17 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 18 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 19 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 20 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 21 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 22 © OpenStax Algebra and Trigonmetry is licensed under a CC BY (Attribution) license
- 4.2 Figure 23 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 24 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 25 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Figure 26 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- Exercises # 56 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- Exercises #57 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- Exercises # 58 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #59 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #60 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #61 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #62 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #63 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises Figure 27 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #71 © OpenStax Algebra and Trignometry is licensed under a CC BY (Attribution) license
- Exercises # 73 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #75 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #77 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #79 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #81 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #83 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- Linear Function 85 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #86 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #87 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #88 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #99 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
- 4.2 Exercises #103 © OpenStax Algebra and Trigonometry is licensed under a CC BY (Attribution) license
